SENSOR DIGITAL GAUGE 3000PSI LCD
The MG-3000-A-9V-R is a stand-alone 9V battery operated multi-functional digital pressure gauge from MG-9V Model Series.
MG-3000-A-9V-R Digital Pressure Gauge: Datasheet, Features, Application
SENSOR DIGITAL GAUGE 3000PSI LCD The MG-3000-A-9V-R is a stand-alone 9V battery operated multi-functional digital pressure gauge from MG-9V Model Series.
17
Aug 21, 2021
Megan Abe
MG-3000-A-9V-R
Inquiry
Min.: 1 Mult.: 1
Quick Links
MG-3000-A-9V-R Description
The MG-3000-A-9V-R is a stand-alone 9V battery operated multi-functional digital pressure gauge from MG-9V Model Series. It contains a media isolated piezoresistive pressure sensing element, signal conditioning circuitry for temperature and calibration compensation, a 304L stainless steel input pressure port and an LCD backlit display.
Specifications
SSI Technologies Inc MG-3000-A-9V-R technical specifications, attributes, parameters and parts with similar specifications to SSI Technologies Inc MG-3000-A-9V-R.
MG-3000-A-9V-R Tech Specifications
MG-3000-A-9V-R Tech Specifications
SSI Technologies Inc MG-3000-A-9V-R technical specifications, attributes, parameters and parts with similar specifications to SSI Technologies Inc MG-3000-A-9V-R.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Package / Case | Module Box with Display | |
| Supplier Device Package | MediaGauge | |
| Operating Temperature | -10°C~60°C | |
| Series | MG-9V | |
| Published | 2011 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 60°C | |
| Min Operating Temperature | -10°C | |
| Applications | Industrial Automation | |
| Voltage - Supply | 9V | |
| Output | LCD Display | |
| Output Type | Wheatstone Bridge | |
| Accuracy | ±0.25% | |
| Operating Pressure | 3000PSI (20684.27kPa) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pressure Type | Vented Gauge | |
| Port Style | Threaded | |
| Port Size | Male - 1/4 6.35mm NPT | |
| Maximum Pressure | 9000PSI (62052.82kPa) | |
| Max Pressure | 9000 PSI | |
| Features | Temperature Compensated | |
| RoHS Status | RoHS Compliant |
MG-3000-A-9V-R Features
-
Superb Accuracy:土 0.25% Full Scale
-
Pressure Ranges: 5, 15, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000 PSI
-
Keypad operated functions: Auto zero and peak hold
-
Operating Temperature: -10°C to 60°C
-
Storage Temperature: -20°C to 85°C
-
NIST traceable certificates are available
-
NEMA 4X Rating
-
Chemical Compatibilities: Any gas or liquid compatible with 304L and 316L stainless steel. For example, Motor Oil, Diesel, Hydraulic fluid, Brake Fluid, Water, Waste Water, Hydrogen, Nitrogen, and Air.
-
LCD Display Battery Saver Mode: MG-9V automatically powers down after 5 minutes.
-
Multiple Pressure Units: PSI, BAR, MPA (kg/cm2) (Optional Ft. of Head available)
-
Compact, Robust Package: 3 inches with black ABS Thermoplastic case
MG-3000-A-9V-R Typical Application
-
General Purpose
-
Test
-
Process
-
Control
-
MRO
-
Water
-
Compressors
-
Refrigeration
-
Fuel
-
Cells
-
Pumps
-
Hydraulics
-
Spraying Systems
-
Pneumatics
-
Flow
-
Robotics
-
Agriculture
-
Hydrogen
-
Storage

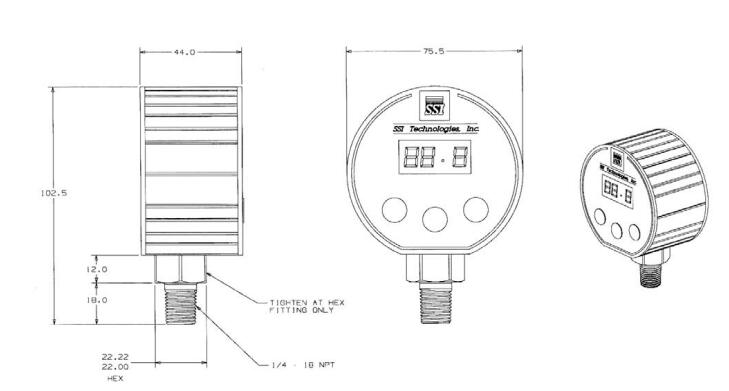

MG-3000-A-9V-R Package
MG-3000-A-9V-R Manufacturer
SSI Technologies, LLC is an innovative company committed to precision engineering and customer support. As a partner to our customers, we invest in the development and advancement of new and emerging technologies. Since 1982, SSI has been a leader in the custom development of sensor solutions for a wide range of markets. Our technological and customization abilities, along with our experienced engineering staff help our customers surpass expectations.
Datasheet PDF
Download datasheets and manufacturer documentation for SSI Technologies Inc MG-3000-A-9V-R.
MG-3000-A-9V-R Documents
MG-3000-A-9V-R Documents
Download datasheets and manufacturer documentation for MG-3000-A-9V-R
Datasheets
MG 9V Model Series
Frequently Asked Questions
What is MG-9V Model Series？
The Media Gauge TM Model MG-9V digital pressure gauge is a stand-alone 9V battery operated multi-functional digital pressure gauge. The MG-9V digital pressure gauge contains a media isolated piezoresistive pressure sensing element, signal conditioning circuitry for temperature and calibration compensation, a 304L stainless steel input pressure port and an LCD backlit display.
Why is the MG-9V Model Series better than mechanical pressure gauges?
Because the Media Gauge TM MG-9V digital pressure gauge has better accuracy, longer life and standard multiple functions which make it is a better choice than mechanical pressure gauges.
What is the MG-9V Model Series made of?
The Media Gauge TM MG-9V digital pressure gauge is made of all laser-welded 304L & 316L stainless steel for optimal media isolation and usage in a wide variety of media.
FAQ
What is MG-9V Model Series？
The Media Gauge TM Model MG-9V digital pressure gauge is a stand-alone 9V battery operated multi-functional digital pressure gauge. The MG-9V digital pressure gauge contains a media isolated piezoresistive pressure sensing element, signal conditioning circuitry for temperature and calibration compensation, a 304L stainless steel input pressure port and an LCD backlit display.
Why is the MG-9V Model Series better than mechanical pressure gauges?
Because the Media Gauge TM MG-9V digital pressure gauge has better accuracy, longer life and standard multiple functions which make it is a better choice than mechanical pressure gauges.
What is the MG-9V Model Series made of?
The Media Gauge TM MG-9V digital pressure gauge is made of all laser-welded 304L & 316L stainless steel for optimal media isolation and usage in a wide variety of media.
